Texts and labels > Text design

In the text field you can enter your own text for your image or text object. You can change the font size, color and type of the text. You can also give the whole text a text effect For this there are text-friendly effects available. However you can also create effects yourself in the image editor.

Tipp

You can find a project under File / Open / Sample project which contains various formats. The sample project can be found under the title "Ideas for captions".

1 Text input in the text field (rich text)

Combining text styles

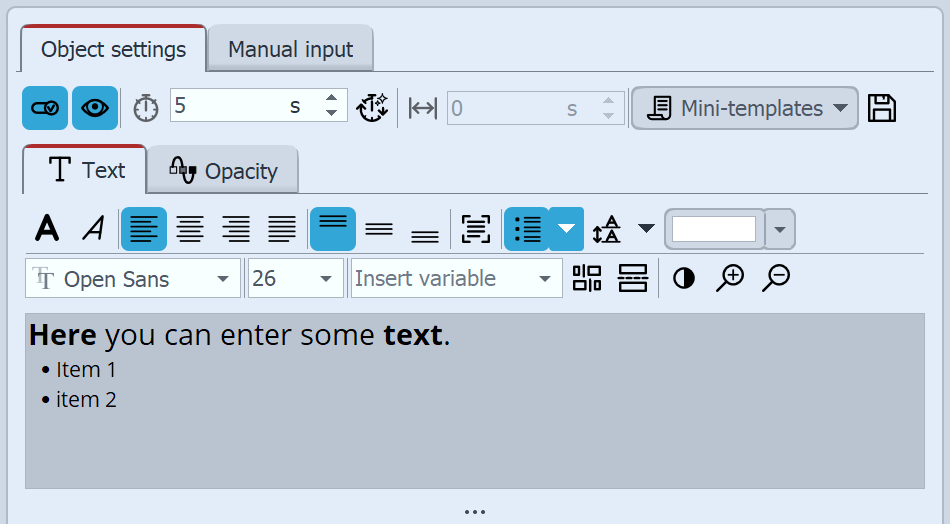

In the properties field, click on the text tab. Here you will see an empty field. Click the field and enter your text. If you need more space, drag the text box to make it larger with the help of the shaded area, which is located centrally below the text box. With the magnifying glass icons you can zoom in or out to make the writing in the text field seem bigger or smaller.
You can customize the background color of the text box so that you can see the text more clearly. To do this you can switch between light and dark by clicking on the black and white button.

If you need more space, drag the text field larger using the three dots located centrally below the text field. You can use the magnifying glass icons to enlarge or reduce the display of the font in the text field.

The background color of the text field can be adjusted so that you can see the text better. To do this, you can switch between light and dark by clicking on the black and white button.

If you want to make changes to certain areas of the text, highlight the field and then set, for example, the font or color.
You can then combine different text styles with each other, without having to use multiple text objects.

If you want to customize the entire text, you can click in the text box and use the key combination Ctrl + A to select all.

symbol-hint

If red rectangles are displayed when selecting a font in the font list, this is an indication that the corresponding symbols cannot be displayed in this font and will be replaced by a standard font in the project.

2 Enumerations and numbering

Enable list style

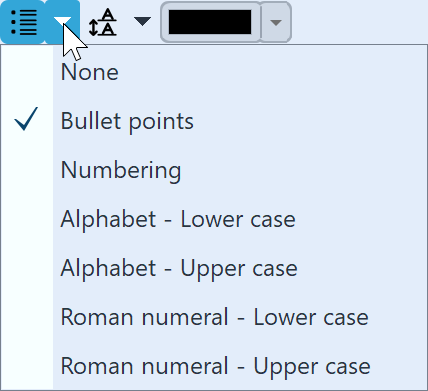

For additional formatting of text you will find at the List button the possibility to use bullets and numbering in a list.

Select the desired type of display. Clicking Enter in the text field adds another enumeration. The color of the markers results from the text color.

To end or remove a set enumeration or numbering, press the button again so that it is unchecked or select None from the drop-down list.

3 Line spacing

Change line spacing

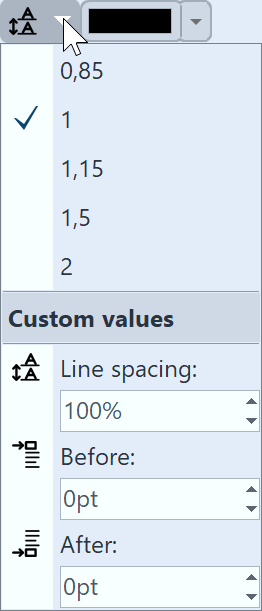

To increase or decrease the space between two lines of text, place the cursor in the text input field at the end of the desired line. Then click the Line spacing button and select the desired spacing value.

If you want to adjust the line spacing for the entire text, you can click in the text input field and use the key combination Ctrl + A to select the entire text. Then change the line spacing. It will be changed for the entire text.

4 Border, shadow and effects for text

Rand, Schatten oder Text-Effekt aktivieren

In addition to the normal settings for color, font and font size, you can also assign a contour and a shadow effect to the text in the Properties window. In theEffect (fx) section , you make settings that are applied to the entire text in the text field.

	Activates the contour (letter border) for the text in the text field. You can also select the color for the letter border (contour color).
	Activates the shadow for the text in the text field. You can also select the color for the shadow (Shadow color).
	Activates the text effect for the text in the text box. By clicking the arrow located next to image editor, a separate text effect can be created. However you can also use a ready-made effect from the Toolbox. You can find these in the image effect tab in the section Text friendly.
Opacity	The value affects the opacity of the text while leaving the opacity of the letter border. This allows the interior of a text to be transparent while still displaying the outline.

symbol-info

If you want to use image effects for texts, see our blog post "DiaShow 10 neue Funktionen: Bildeffekte für Texte"for more tips and design ideas.

5 Add background to text

In the text properties, you can add a background directly to the text. This makes it easier to read in front of animated images and videos and can be used as an independent stylistic device.
Depending on the setting, the text can be highlighted with a single color or with complex shapes, either with or without a border.

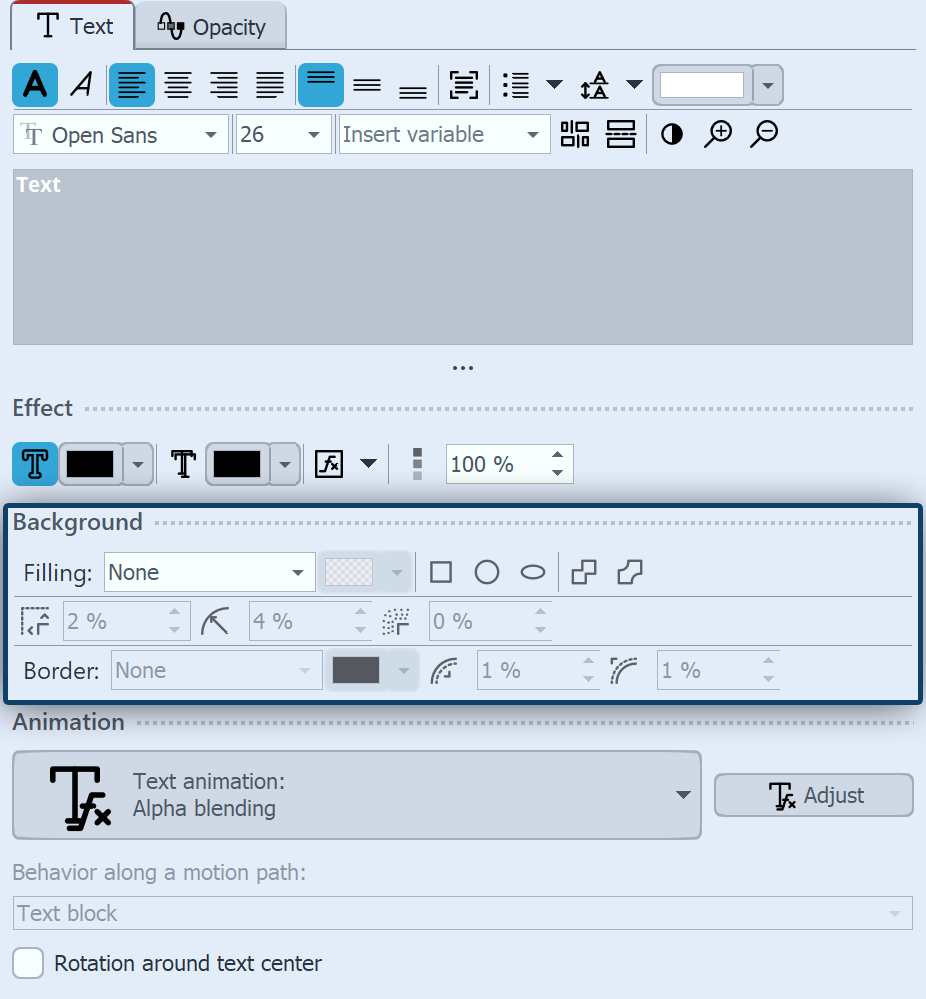

Settings for text background

Settings for the filling

By selecting a fill type, your text is highlighted in color. Once a fill type has been selected, the desired color can be set in the color selector. This color can also be semi-transparent.

Without: Text has no background
Position frame: complete selection frame is filled
Complete text: Color field up to the outermost edge of the letters

In the following variants, the background only appears gradually or only temporarily, depending on the animation setting. This allows, for example, that only the words that are currently being displayed receive the color background.

Visible text parts combined
Animated text parts combined
Active segment

Complete text letter by letter
Visible text parts letter by letter
Animated text parts letter by letter
Active segment letter by letter

Various shapes (rectangle, circle, ellipse) are available for the text background.

Settings for the border

Select whether and how the filling should be provided with a border.
Depending on the selected setting (None, Inside, Outside, Center, User defined), the width of the inner and/or outer border can be defined.
Use the color picker to define the color for the border of the text background.

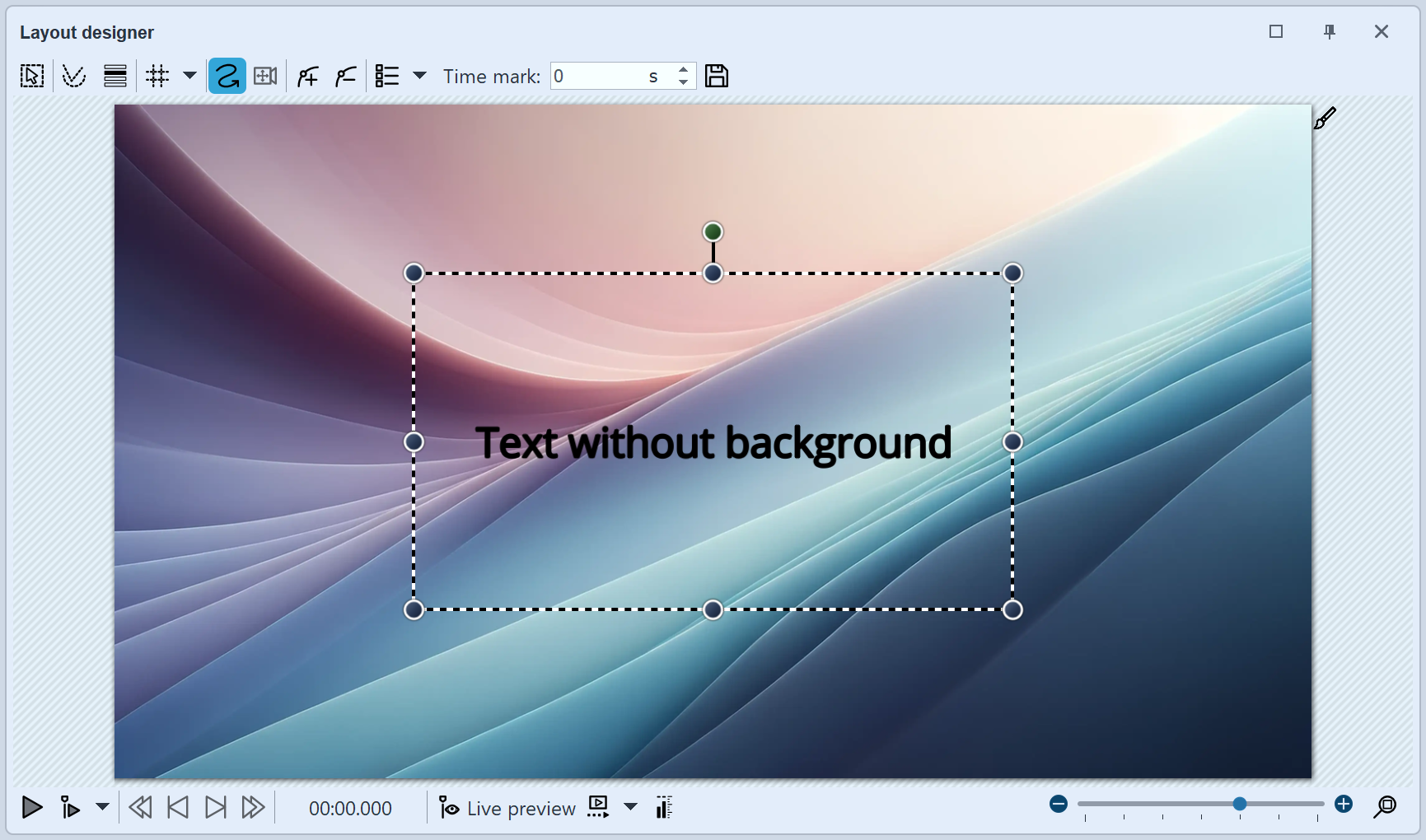

Text without background fill

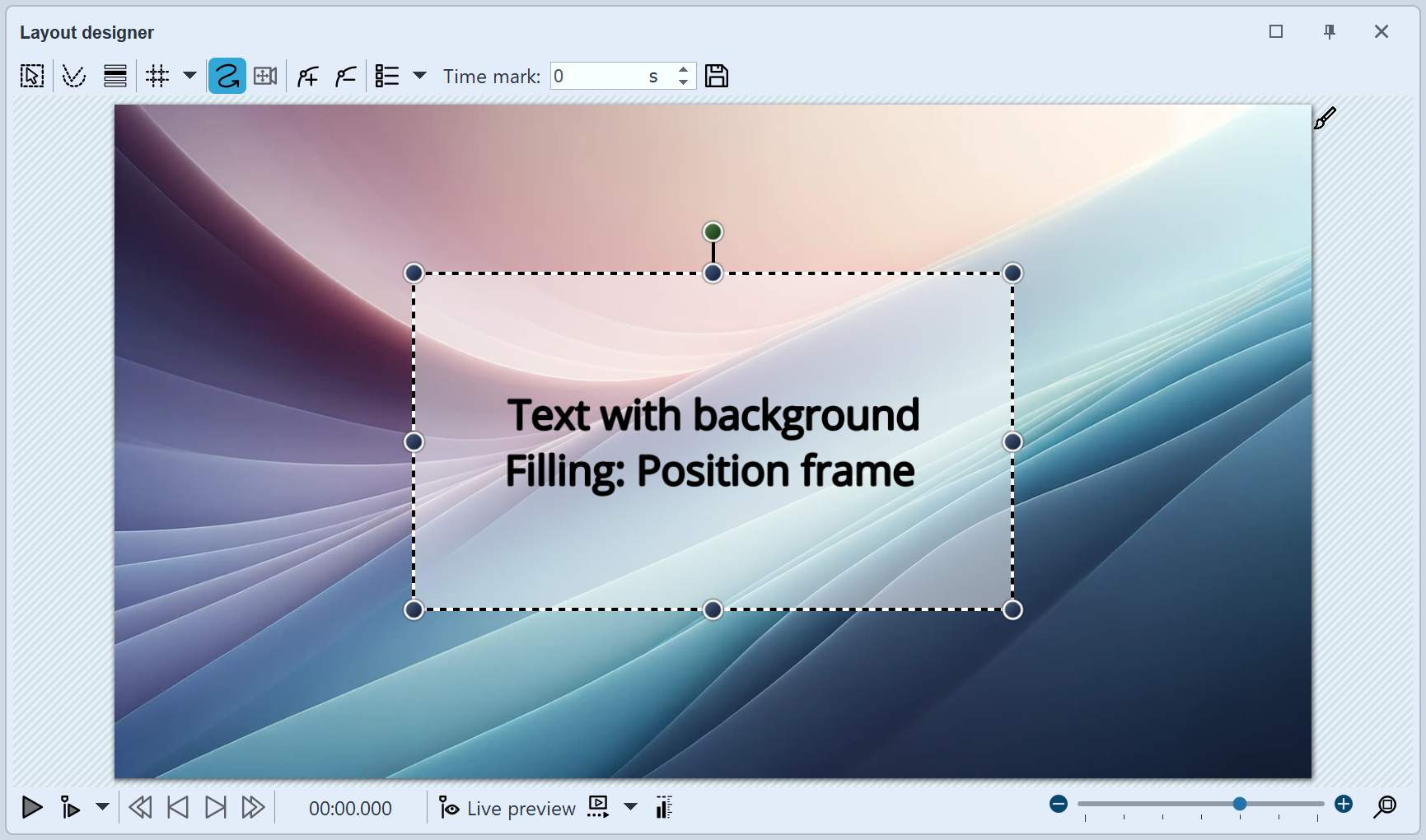

Text with fill variant "Position frame"

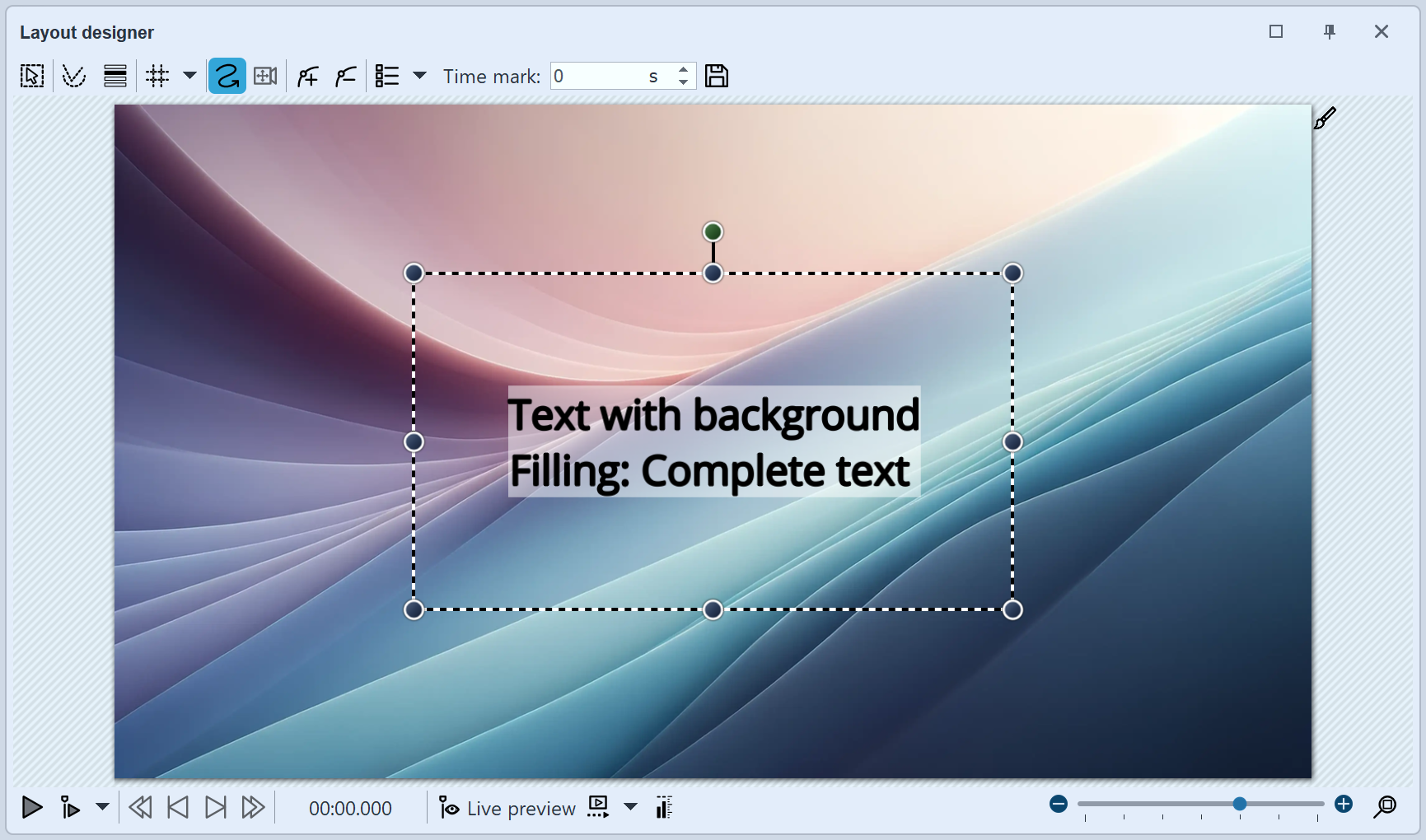

Text with fill variant "Complete text"

Text with position frame fill and border

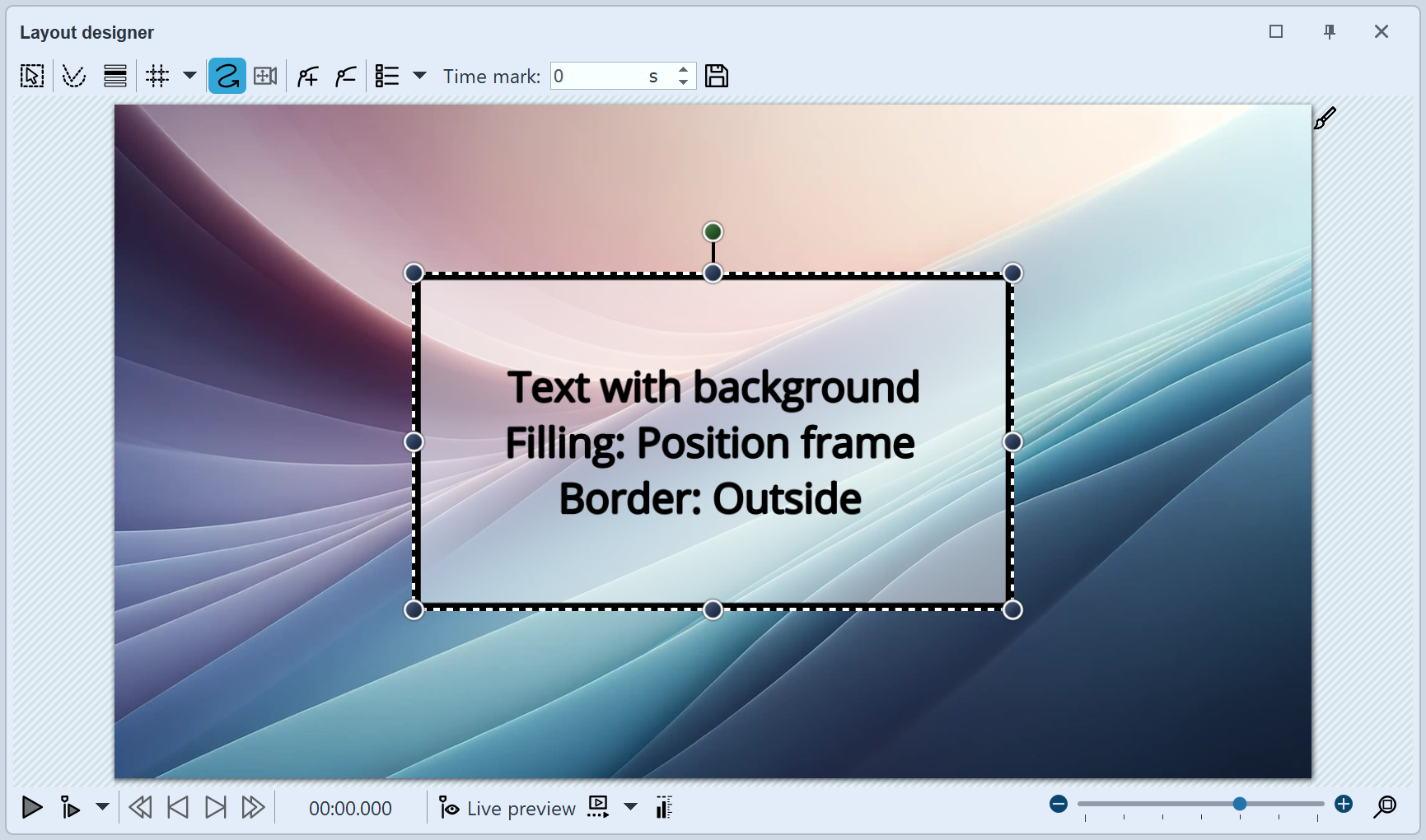

Text with fill variant "Position frame" and border "Outside" (selection frame drawn smaller)

symbol-info

If you want complex or color-banding gradients as a background, design these with a separate text object in front of the dynamic shape Gradient.

symbol-info

Under Toolbox/Objects in the Captions section, you will find templates that you can use for your project. Drag the desired object into the Timeline and adjust its content.
