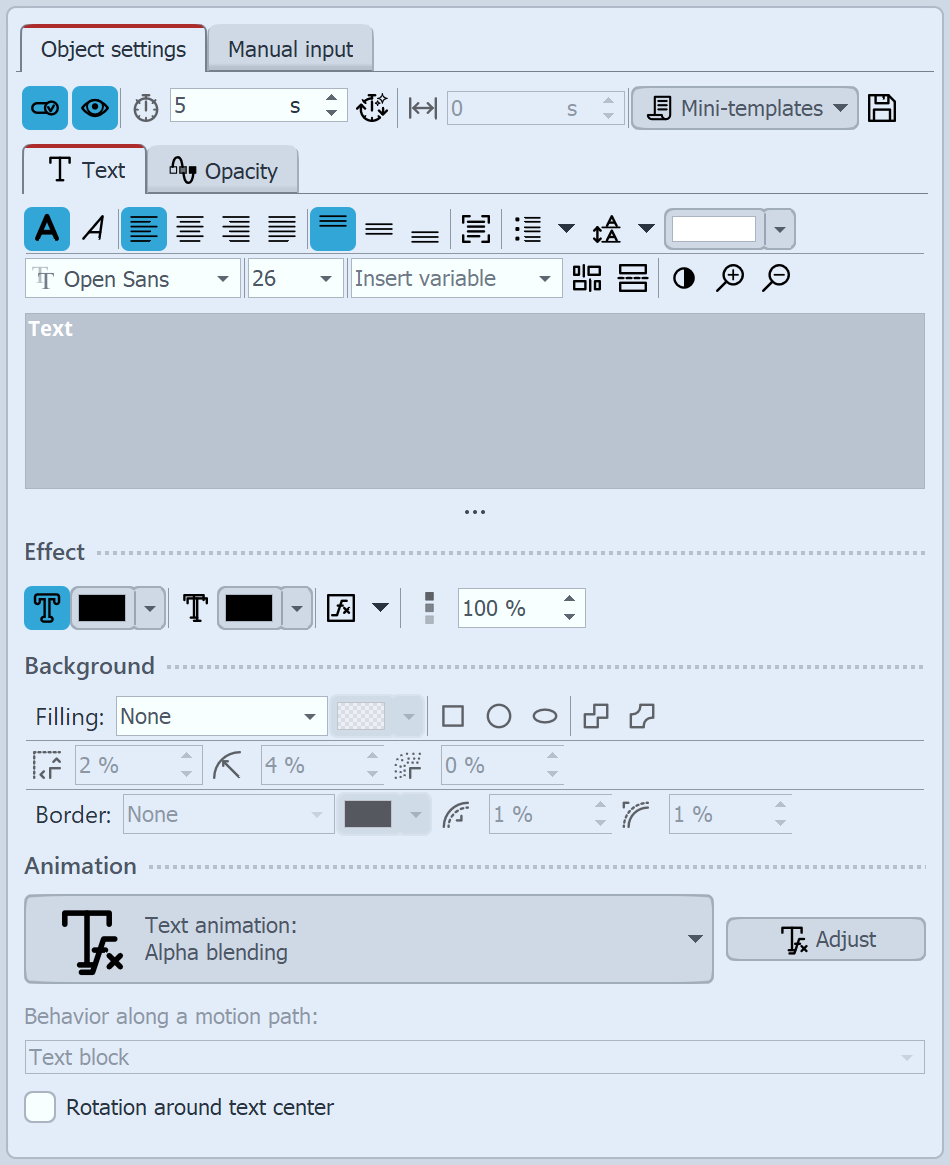

Properties for Text object

Properties for Text object

When you select a Text object, there are various setting options for the Text object in the Object settings window, which you will learn more about below. To influence the text properties, the text or text parts must be selected in the text field.

In the font field and the font size field you set the font and letter size. Use the color selection field to influence the font color.

The icons for Text bold and Text italic influence the font style.

The text alignment as well as the position of the text in the text frame is determined by the following symbols:

Linksbündig

Text is left-justified.

Zentrierter Text

Text is displayed centered.

Props_Text_right

Text is displayed right-justified.

Props_Text_justified

Text is arranged in justified type.

Props_Text_top

Positions the text at the top of the text frame.

Props_Text_middle

The text is centered vertically in the text frame.

Props_Text_bottom

Places the text at the bottom of the text frame.

Props_Text_free

Fit in: Reduces the font size so that the text fits completely within the text frame.

Props_Text_list

Formatting text as bulleted or numbered lists

Props_Text_linespacing

Increase or decrease line spacing

The Insert variable field can be used to insert Exif and IPTC data into the text.

The background color in the text field can be set to light or dark for better readability using the black and white button. You can use the magnifying glasses to enlarge or reduce the text field view to make it easier to read texts with very small or very large font sizes.

In the Effect section, you can make settings for the text border, text shadow, opacity of the font color and text effects. These settings are applied to all text in the text field.



The text can be displayed with a text background and/or with a text border. The following fields are activated by activating a selection under Filling or Border. The color for the text background and the border is defined via the color selector.

The text background and text border can be switched off again by setting the Filling to None.

Linksbündig

Text filling as rectangular shape

Zentrierter Text

Text filling as circle shape

Btn_TextBG_Ellipse

Text filling as ellipse shape

Btn_TextBG_Connection

Simple connection

Btn_TextBG_ConnectionSm

Smoothed connection

Btn_TextBG_Margin

Margin between text and background

Btn_TextBG_Corner

Corner radius (only for rectangular shape background)

Btn_TextBG_SoftBorder

Soft border

Btn_TextBG_InnerBorder

Inner border

Btn_TextBG_OuterBorder

Outer border

If you want the text to be animated, you can select various predefined animations from the list. Via the button Tfx Edit effect you can adjust the animation individually. There you can also see a preview of the animations.

Under Behavior along a motion path you can define how the text behaves when you have assigned a motion path to it. You can choose whether the entire text block should be moved or whether the individual letters should run along the motion path. In this case, the letters "nestle" along the path.

If you want your text to run along a specific path, you can find instructions on how to do this in the "Motion paths with text" chapter.

Rotation around text center refers to animations in which the text is rotated. You can also specify a different rotation center under Adjust.

symbol-hint

If red rectangles are displayed when selecting a font in the font list, this is an indication that the corresponding symbols cannot be displayed in this font and will be replaced by a standard font in the project.

Opacity

Changing the Opacity is described in the "Animated transparency" chapter.

symbol-info

How to save the font settings is described in the chapter "Program settings" in the item "Default image settings".
