Functions in the Image editor

 Previous pageReturn to chapter overviewNext page

1 Tools in the Image editor

Right-click the image and select the Edit image option. The Image editor opens. With the tools available here you can, e.g.

•Rotate and crop images

•Flip images

•improve the image exposure

•correct the color or colorize the image

symbol-hint

All image editing functions do not change your original image. The changes only affect the display of the image within the project.

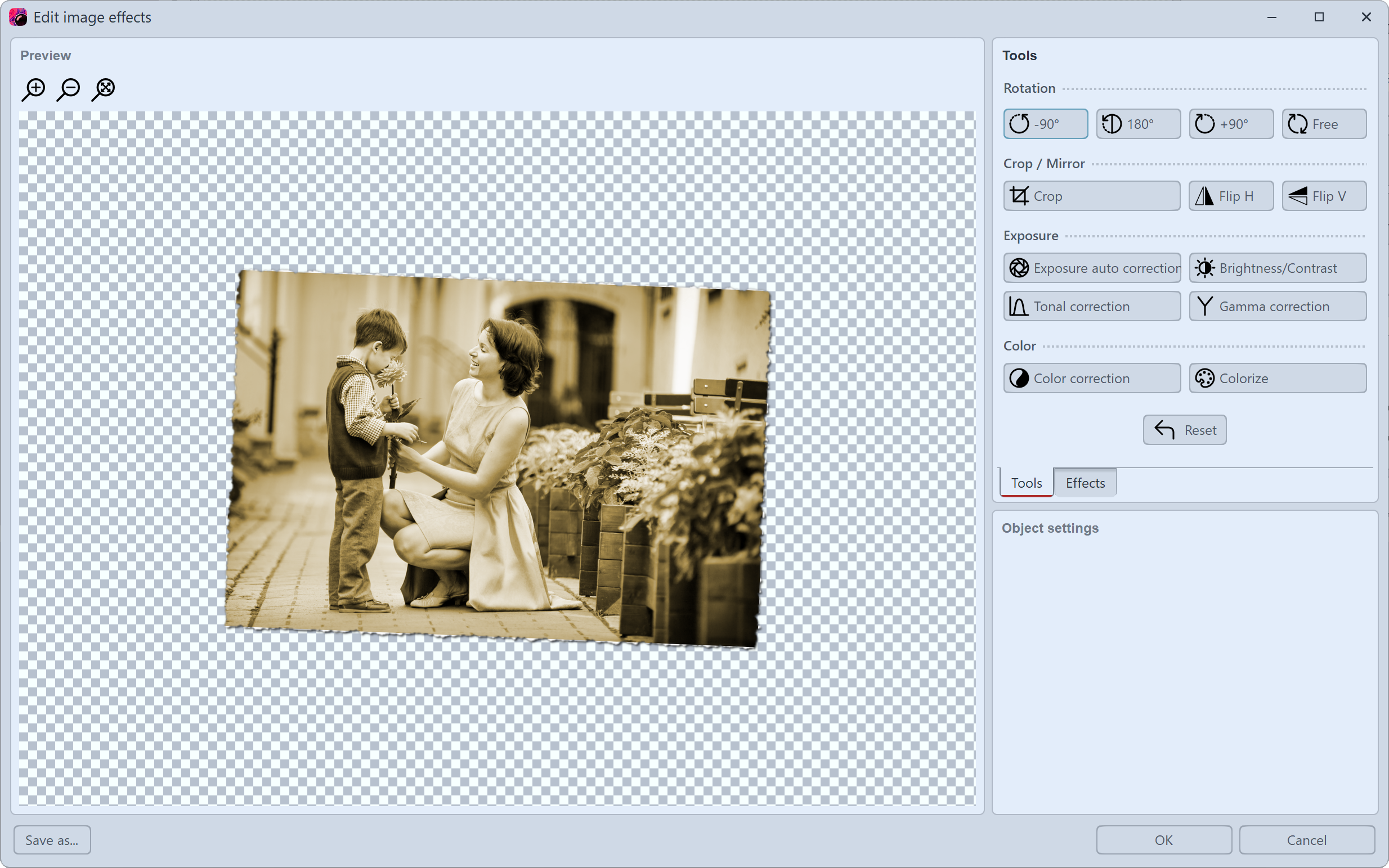

Image editor

Image editor

2 Effects in the Image editor  VIDEO VISION   STAGES

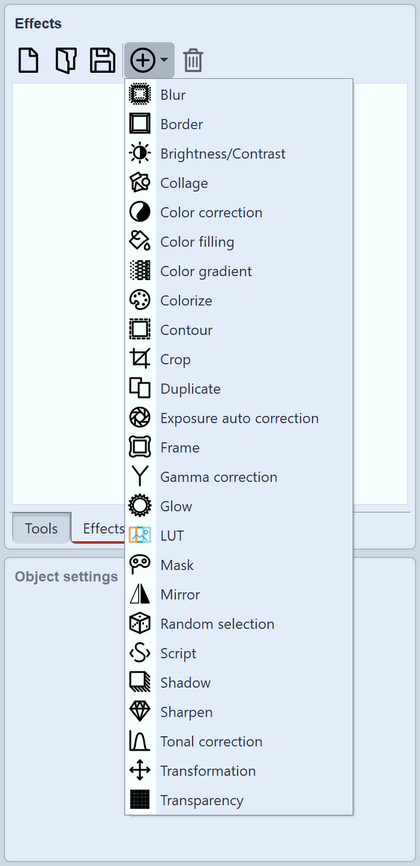

Effect menu

Effect menu

In addition to the Tools tab, there is also the Effects tab. It is located in the center right corner.

With the help of the Plus icon you can apply effects to the image, for which you will find further setting options in the Object settings section.

Among other things you can

•blur or sharpen the image

•add a shadow

•add transparency

•add a border

Effects can also be nested and combined with each other, greatly increasing the possibilities for creating new image effects. From simple image enhancements to elaborate effects, you have many design options.

symbol-info

For further understanding of the effect editor, please also read the blog post "Wie ein Spiegelungseffekt entsteht".

3 Save image with effect

At the bottom left of the image editor you will find a button that will let you save your image with the applied effects as a PNG file on your computer.
