Text with movement paths

<< Click to Display Table of Contents >>

Navigation:  Design options in AquaSoft Stages > Movement paths

Text with movement paths

Previous pageReturn to chapter overviewNext page

Just like images, you can also let text move along movement paths. Please read the chapter Simple movement shots first to get to know how to set movement marks.

Create a new project TBr_New and insert a Text object.

TBx_Text

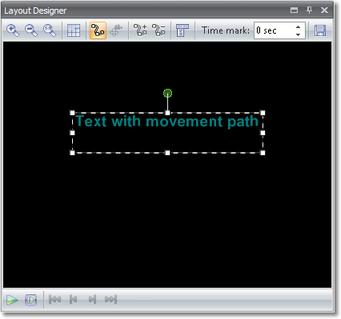

LA_Text_MovementPath1



Now use LABr_AddMovementMark to add several new movement marks. Position them in Layout Designer.

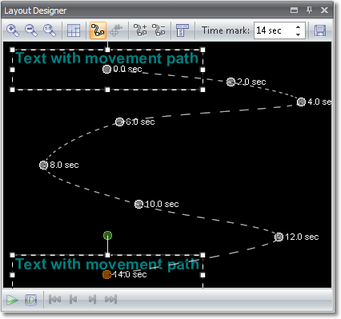

LA_Text_MovementPath2



If you replay this small example you will see that the text moves along the path.

In the Properties for Text exists an option to specify the behavior of the text along the path during replay.

Hint

This feature is only available in AquaSoft Stages Ultimate.

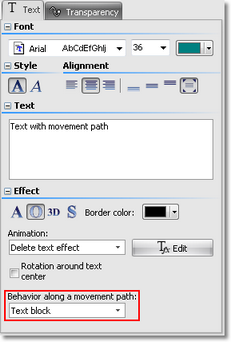

Props_Text_Textbehavior2_i



Text block

The text remains horizontally and moves along the path.

Separate characters

The characters are separately animated and snuggle up to the path.

Rotate text block

The whole text gets rotated along the path.

Rotate characters

The characters move separately along the path and snuggle up to it.

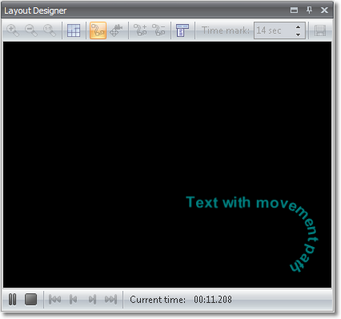

Example: Rotate characters

LA_Text_MovementPath3
