Collage

Previous pageReturn to chapter overviewNext page

Bsp

BspTut



In only a few steps, you can create beautiful collages.

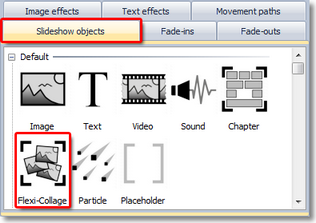

Double-click the Collage object from the Toolbox.

TBx_SlideShowObjects_Collage



In this way a Collage is inserted into your project. Click this Collage in the Image list or on the Timeline and you will see in the Layout Designer that the Collage is empty at the moment. In order to fill it in, just double-click the Image object from the Toolbox.

TBx_Image



In the dialog which now appears, simply select all images to be used for your Collage.

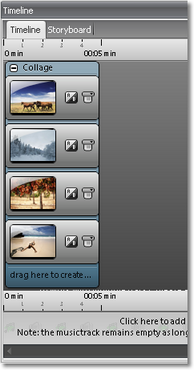

These are inserted into the Collage, since they were selected in the Image list and on the Timeline. If you click TreePlus next to the Collage, you can view all images in the Collage.

ImgL_Collage2

Timeline_Collage1

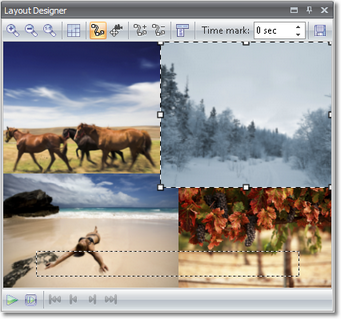

Now simply click on the individual images and drag/maximize/minimize them as you please, until you are happy with the result. You can reduce the images using the positioning framework in the Layout Designer.

LA_Collage2



Now insert a Text from the Toolbox and position it as you please.

TBx_Text



Hint

If the Text is not inserted into the Collage now, the Collage was probably not selected when you inserted the Text. Click and simply drag the Text onto the Collage and release the mouse button. This works in the Image list, on the Timeline and on the Storyboard.

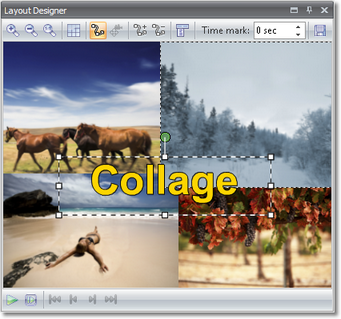

LA_Collage3



Now you have a finished Collage, consisting of your images and a text. The images can also overlap. Likewise you can create an image within image effect by not reducing the size of the first image.

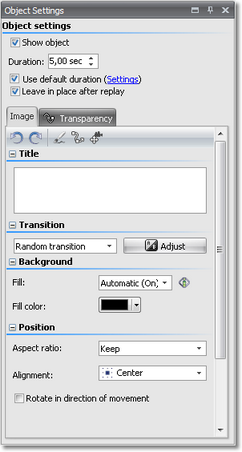

If you select the Collage object, you can change Properties of the collage. You can determine a transition and change the exposure time.

Props_Collage_Image_Full



Images and texts within a Collage are not independently animated. To achieve this you need the Chapter object.

As you can see, putting together a pretty Collage is achieved quickly and easily.



Tipp

As in an image, in a Collage you can zoom and furnish this with a camera pan. Simply try it out.

You will find more about movement path in the chapters Movements and Zoom.
