Motion paths > Editing the path

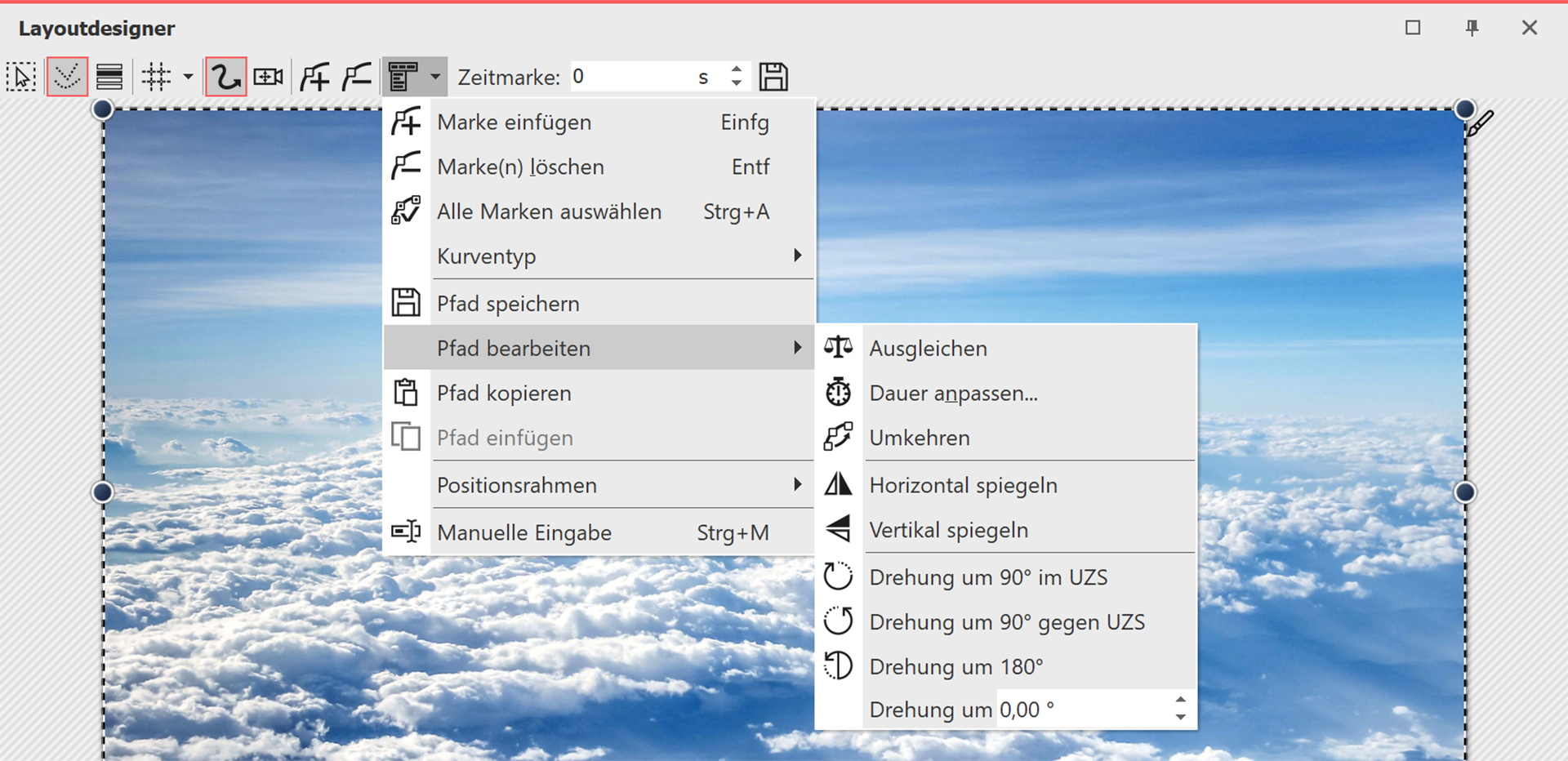

In the Layout designer, call up the context menu, and you will find under the option editing the path that there are further options available to you. Alternatively, click on the icon in the Layout designer or call it up by right clicking in the Layout designer.

Options for path in the context menu

Hard curve	The change of direction takes place abruptly, motion has constant speed
Soft curve	The change of direction is gentle, movement begins and ends more slowly
Positioning frame	Size of the previous / custom size / scale to full screen
Balance path	Length of time between the motion markers is matched to the distance between the markers, so that the motion path is smooth.
Reversing the path	Puts all the motion markers in reverse order
Flip horizontally	Horizontally mirrors the motion path
Flip vertically	Vertically mirrors the motion path
Rotation of 90° clockwise	Rotates the motion path by 90 degrees clockwise
Rotation of 90° anti-clockwise	Rotates the motion path by 90 degrees anti-clockwise
Rotation of 180°	Rotates the motion path by 180 degrees clockwise
Rotation of ...	Rotates the motion path to any angle
Changing the duration	Shortens or lengthens the duration of the motion path to a preferred length in seconds or percent
