Working with keyframes

<< Click to Display Table of Contents >>

Navigation:  Program overview

Working with keyframes

Previous pageReturn to chapter overviewNext page

Hint

This feature is only available in AquaSoft Stages.

1. How can you use keyframes in Stages?

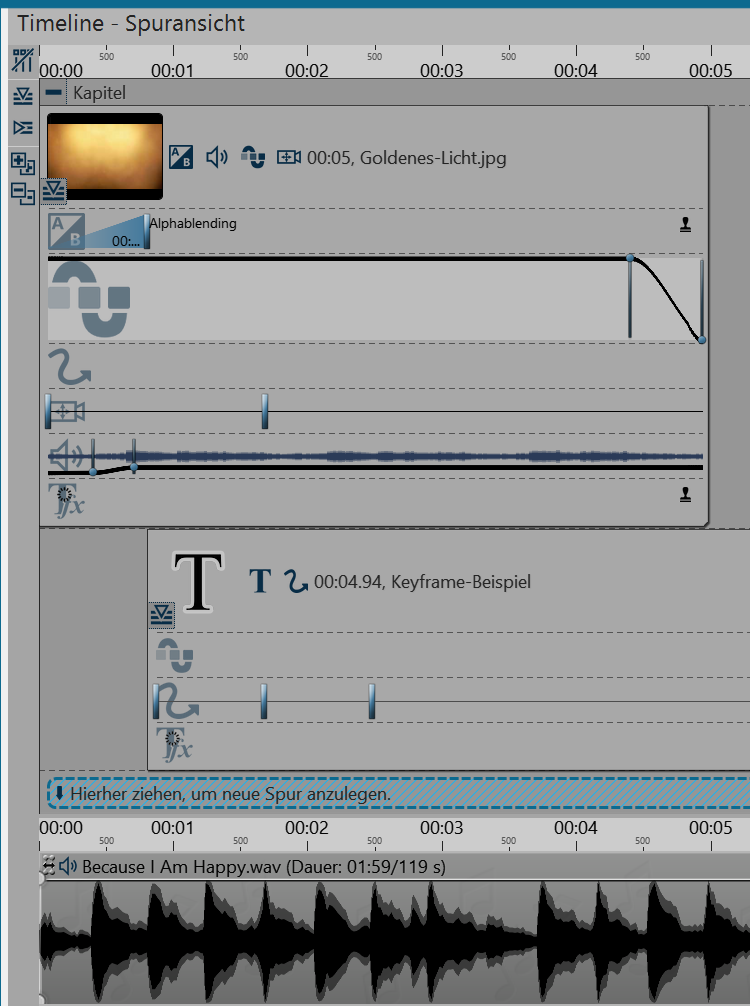

Keyframe track in the Timeline

For each animation the object contains multiple keyframe tracks

In Stages you can control, among other things, transparency, fading in and out, screen panning, the motion path and the text display in the Timeline, over Keyframes.
This allows you to match the effects by time.
If you are using music or sound, the effects can be matched precisely to the audio with the help of the Keyframe track, but the effects are also matched better to each other with the help of the Keyframes.
A Keyframe always stands for a particular setting, which is displayed at a specified time. The values which lie between the two Keyframes are are automatically generated by Stages.
In this way you can completely control a process of transparency, a movement or a cross-fade using Keyframes.

2. How do you open the Keyframe tracks?

Every Object in the Timeline has Keyframe tracks, with which various Effects can be controlled.

On the left side of the Timeline there are five small buttons which help you work with the Tracks and the Keyframes. Using this you can open and close all the Tracks all at once, as well as getting all the Keyframe Tracks to fade in or out.

TLBr_RemoveMarkers

Remove all Timeline Markers

TLBr_OpenKeyframeTracks

Open all Keyframe Tracks

TLBr_CloseKeyframeTracks

Close all Keyframe Tracks

TLBr_OpenContainter

Open all Containers

TLBr_CloseContainter

Close all Containers

Text Object

Open Keyframe Tracks for Text Object

The symbols to open and close the Keyframe Track can also be found on the individual Objects.
If you wish to save space in the Timeline and prefer not display every individual Keyframe Track to be displayed, simply close the others. Then use the button to open the Keyframe Track, which is located on the respective object.

3. How do you use Keyframes?

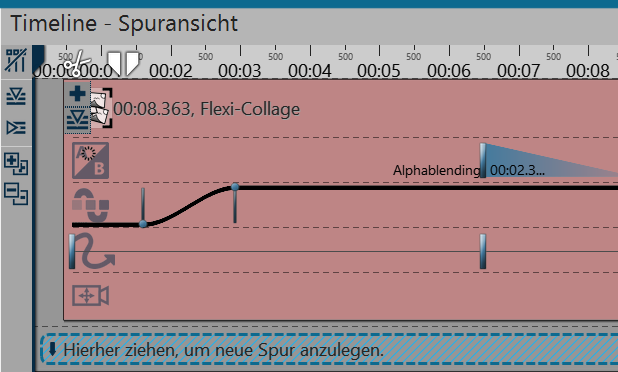

Timeline with Keyframes

Opened Keyframe Tracks

First of all open the Keyframe Tracks of the Object. Depending on the type of Object, there are differing Keyframe Tracks available. You can see which Effect or which Property can be set for each Track thanks to the symbols at the beginning of each Keyframe Track.

If you wish to edit the Keyframes in a particular track, first click on the relevant Track. This is then highlighted by a slight enlargement.

Then click anywhere within this Track to create a Keyframe. This Keyframe can create a new Motion Marker in the Track for the pan shot whose Properties you can, for example, set precisely in the Layout designer.

A Keyframe in the Track for Transpareny creates a new point in the Transparency Curve. You see this curve with your ups and downs directly in the Keyframe Track.

4. Meaning of the symbols in the Keyframe Tracks

When you have opened the Keyframe Tracks you will see an individual symbol at the beginning of each Track. The symbol indicates the Effect you influence with each Keyframe Track.

Timeline_Keyframes_Blendmode

Duration and type of fading in or out

Timeline_Keyframes_Transparency2

Duration and modulation of opacity (transparency curve)

Timeline_Keyframes_MovementPath

Time interval between the markers on a motion path.

Timeline_Keyframes_Zoom

Time interval between the markers of a pan shot

Timeline_Keyframes_Sound

Chronological sequence of volume change

Timeline_Keyframes_Texteffect

Duration and type of text effect
